ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK

Product Categories
Hubei iTruck Import and Export Trading Co., Ltd
Contact Now

ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK

Brand Name : ISUZU

Certification : ccc

Place of Origin : Hubei

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 units per month

Delivery Time : 20-35 working days

Packaging Details : nude with waxing

Item : ISUZU refuel truck

Material : Carbon Steel

Wheelbase : 3300 mm

Engine : 4KH1CN5LS

Tank Volume : 5 cbm

Manhole : Euro standard manhole

Valve : Emergency shutoff valve

Emission : Euro 5/6

Horse Power : 98hp/120hp

Warranty : 1 year

Contact Now

ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK

Tank trucks/fuel trucks/oil trucks are mainly used for the transportation of various light fuels, heavy oils, edible oils, etc. in
the petrochemical sector. It can be used for sucking oil, pump oil, carring different oil products. The design can realize the
functions of pumping in and out of the meter, self-flowing through the meter, not through the meter.
The tank trucks modified and produced by our company are all modified with domestic mature original chassis, and users can also bring their own chassis.

  1. Tank material: carbon steel, stainless steel, steel lined plastic, aluminum

  2. Tank type: square, oval, round

  3. Oil pump: self-priming pump, gear pump, chemical pump, stainless steel pump

  4. Oil meter: single count, double count, tax-controlled fuel dispenser

  5. Function: It can be independently divided into compartments, and can be divided for different oil products, chemicals, and food

  6. All tank trucks can be designed as chemical trucks.

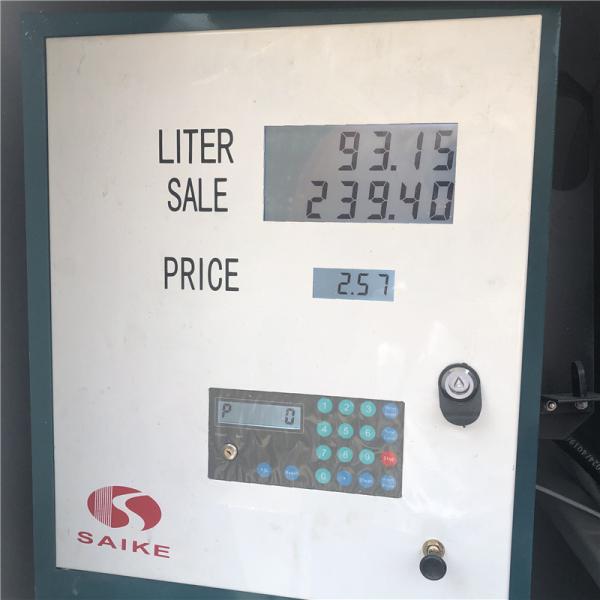

  7. Tanker trucks can be equipped with computer fuel dispensers.

  8. Wide range of tonnage options for tank trucks to meet user needs.

  9. The tank body of the oil tanker is equipped with multiple wave-proof baffles. The high-pressure gas leak test is adopted to make the tank body have the characteristics of high strength for safe and stable transportation.

Main Technical specification

ISUZU 5000L Refuel Truck
Overview
Name ISUZU 5000L Refuel Truck
Dimension(LxWxH) 5990X1940X2080(mm)
Total Mass 8050Kg
Rated Payload 5000Kg
Kerb Weight 3050Kg
Passenger 3
Approach/Departure Angle 24/16
The Parameters of Chassis
Manufacture/Model ISUZU/QL1040A6HAY
Driving Type 4*2 left hand drive
Wheel Base 3360 mm
Gearbox ISUZU MSB, five speed forward and one reverse, manual
Front/Rear Track 1377,1425(mm)
Tyre 700R16
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1015/1620(mm)
Leaf Spring Number 3/3+2
The Paremeters of Engine
Manufacturer/Model ISUZU/4KH1CN5LS
Rated Power 98hp/72kw
Fuel Type Diesel oil
Displacement/Capacity 2999ml
Emission Standard Euro 5
Cylinder Straight/4
Max. torque 220N.m
Velocity 3400rpm
The Parameters of Equipment
Color/Logo Customizable
Volume of Tank 5,000 liters
Compartments 1
Material Carbon steel Q235B
Thickness 5mm
Function Transporting and refueling, etc.
Dispenser Equipped with 15m hose
Oil Pump Equipped
Discharge Valves 1, aluminum
Euro Manhole 1, aluminum
Emergency Shutoff Valve 1
Others Tool box,ladder,railings,static electric coil,walkway,fire extingushers,etc.

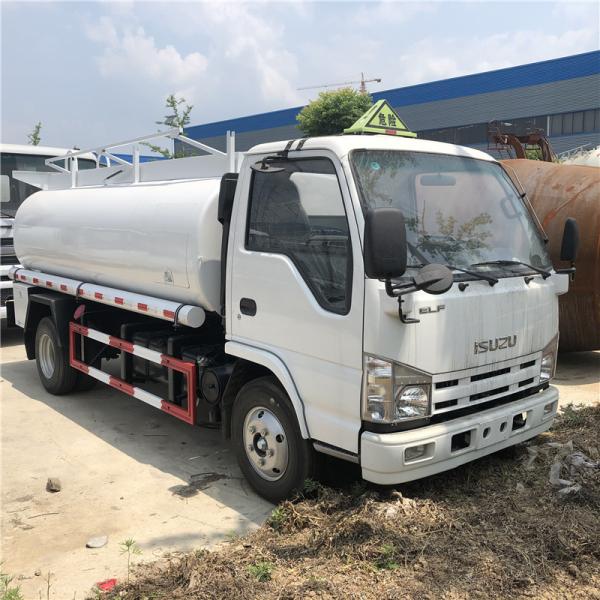

Refueling truck image

ISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCKISUZU 100P DIESEL ENGINE 98HP 4000 LITERS FUEL DISPENSING TRUCK
