Logistics And Transportation 4x2 JAC Cargo Van Box Truck With 2 Ton 3 Tons Loading Capacity

Brand Name : JAC

Model Number : HFC1042L3K

Place of Origin : China

MOQ : 1

Price : 17200

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 units per month

Delivery Time : 20-25 days

Packaging Details : nude with waxing

Chassis : JAC

Color : option

loading capacity : 2-3 tons

Engine : HFC4DA1-1

Front axles loading : 1500 KG

Rear axles loading : 3000 KG

Transmission : manuel

Tire : 7.00R16

Sprins : 7/4+6

Box dimension : 4000x2000x2000 mm

Contact Now

JAC 92hp Eu 2 Engine 3 tons Logistic cargo van truck

Freight trucks, generally referred to as cargo trucks or trucks, include dump trucks, tractor trucks, off-road trucks in off highway and roadless areas, and various vehicles specially manufactured for special needs. Refers to vehicles primarily used for transporting goods, and sometimes also refers to vehicles that can tow other vehicles, belonging to the category of commercial vehicles. Generally, vehicles can be classified into two types based on their weight: heavy and light. The vast majority of trucks are powered by diesel engines, but some light trucks use gasoline, petroleum gas, or natural gas.

Main Technical specification

Overview
Name 3 tons JAC Cargo Van Truck
Dimension(LxWxH) 5990x2200x2750 mm
Total Mass 6350 kg
Rated Payload 3000 kg
Kerb Weight 3350 kg
Passenger 3
Approach/Departure Angle 23°/13 °
The Parameters of Chassis
Manufacture/Model HFC1042L3K
Driving Type 4x2
Wheel Base 3360 mm
Gearbox LC5T255M3
Front/Rear Track 1640/1655 mm
Tyre model 7.00R16
The Number of Tyre 6+1 (spare tyre)
Front/Rear Suspension 1120/2095 mm
Axles Loading Front Man 1.5 T Rear Man 3 T
Oil Tank 120L Iron
The Parameters of Engine
Manufacturer/Model JAC/ HFC4DA1-1
Rated Power 68kw/92hp
Fuel Type Diesel oil
Displacement/Capacity 2772 ml
Emission Standard Eu 2
Cylinder 4
Max. Torque/ speed 240N.m/ 1500-2900rpm
Velocity 2900 rpm
The Parameters of Equipment
Color/Logo Customized
Rear bucket 4000x2000x2000 mm
Dump function option

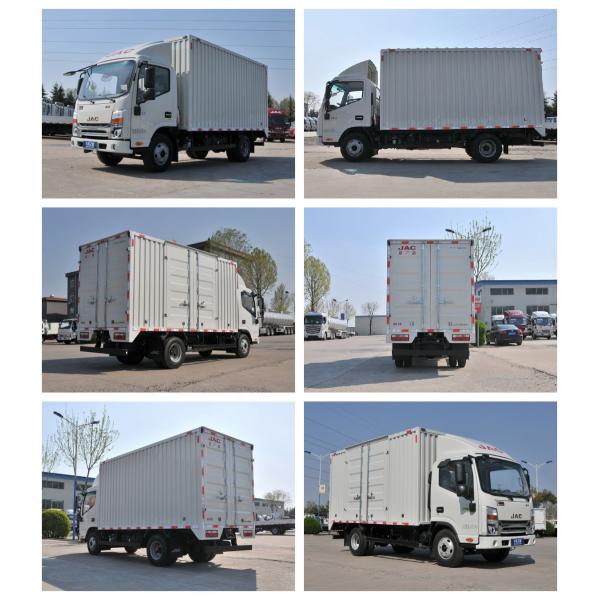

JAC Cargo Fence Van Truck Picture

Logistics And Transportation 4x2 JAC Cargo Van Box Truck With 2 Ton 3 Tons Loading Capacity

Cargo Truck Working Stock

Logistics And Transportation 4x2 JAC Cargo Van Box Truck With 2 Ton 3 Tons Loading Capacity

Cargo Truck with Crane Working

Logistics And Transportation 4x2 JAC Cargo Van Box Truck With 2 Ton 3 Tons Loading Capacity

Export

Logistics And Transportation 4x2 JAC Cargo Van Box Truck With 2 Ton 3 Tons Loading Capacity
