4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK

Product Categories
Hubei iTruck Import and Export Trading Co., Ltd
Contact Now

4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK

Brand Name : ISUZU

Certification : ccc

Place of Origin : Hubei

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 50 units per month

Delivery Time : 20-35 working days

Packaging Details : nude with waxing

Item : ISUZU water tank truck

Material : Carbon Steel

Wheelbase : 3200 mm

Tank Volume : 5 cbm

Emission : Euro 5/6

Horse Power : 120hp

Transmission : 5 forward and 1 reverse

Valve : 2 pcs

Water Cannon : Equipped

Warranty : 1 year

Contact Now

4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK

The watering truck is suitable for all kinds of road washing, trees, green belts, lawn greening, construction of roads, factories and mines, and high-altitude buildings. The watering truck can also be used as a water transpotation truck. The most common models are sanitation watering truck, multi-function watering truck and green watering truck.

Our company's products come standard with front spray (duck bill), back flush, rear spray, side spray, and rear-mounted working platform. The platform is equipped with a green water cannon (which can be rotated 360°, and can be adjusted to either a column or a mist shape). , it can be adjusted to flush, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump (self-priming and self-draining, can pump water from river or pond to tank), power take-off, miscellaneous material filter screen, fire interface, self-flowing ball valve system, ball valve and filter screen are all national standard products, the main pipeline is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve is used. The overall performance is excellent, safe and reliable, high efficiency, large flow, convenient maintenance and so on.

Water Tanker Specs

5000 Liters ISUZU Water Truck
Overview
Name 5000 Liters ISUZU Water Truck
Dimension(LxWxH) 5990x1960x2380(mm)
Total Mass 8050Kg
Rated Payload 5000Kg
Kerb Weight 3050Kg
Passenger 3
Approach/Departure Angle 19/15
The Parameters of Chassis 　
Manufacture/Model ISUZU
Driving Type 4*2 left hand drive
Wheel Base 3360 mm
Gearbox ISUZU MSB, five speed forward and one reverse, manual
Front/Rear Track 1377,1425(mm)
Tyre 700R16
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1015/1620(mm)
Leaf Spring Number 3/3+2
The Paremeters of Engine
Manufacturer/Model ISUZU
Rated Power 120hp
Fuel Type Diesel oil
Displacement/Capacity 2999ml
Emission Standard Euro 5
Cylinder Straight/4
Max. torque 280N.m
Velocity 3400rpm
The Parameters of Equipment 　
Color/Logo Customizable
Material 4mm Carbon Steel
Volume of Tank 5,000 Liters
Water Pump Equipped
Discharge Valve 1 pcs
Fire Fighting Joint 1 pcs
Manhole 1 pcs
Ladder Equipped
Hoses 2 pcs, 3 meters
Water Cannon 1 pcs
Water Sprinkler, Sprayer 6 pcs

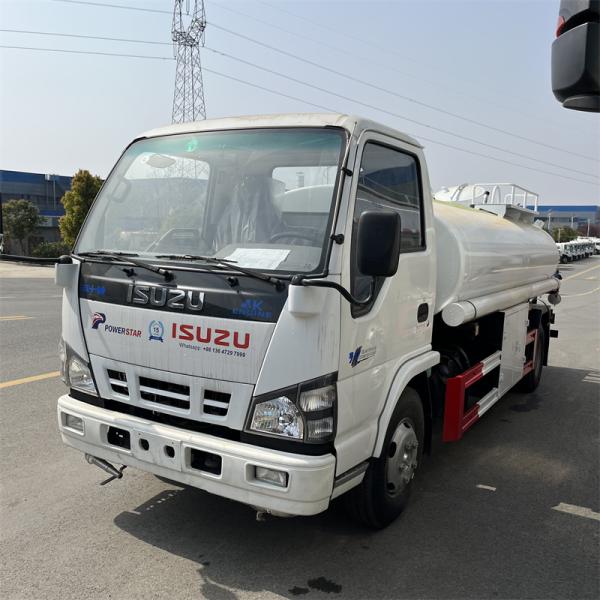

Water tank truck image

4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK4X2 600P 120HP DIESEL ISUZU 5000 LITERS WATER TANK TRUCK CARBON STEEL TANK
